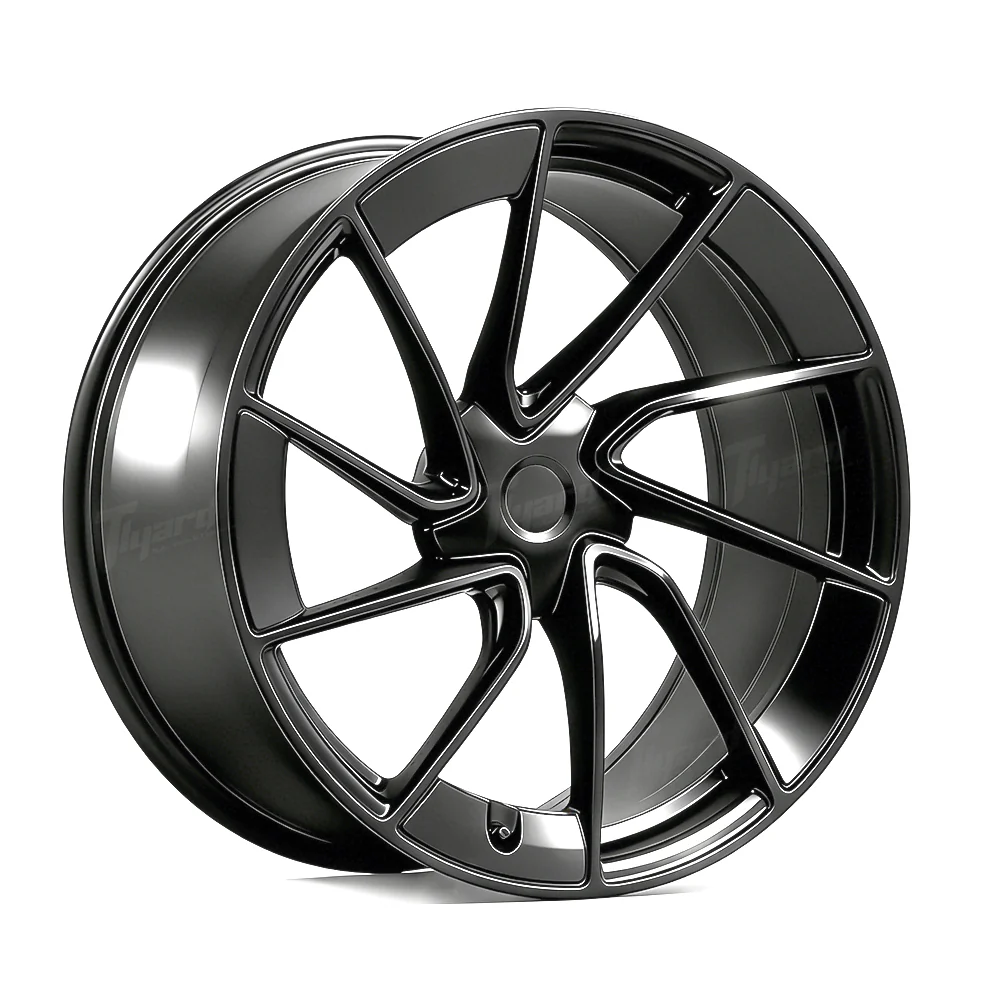

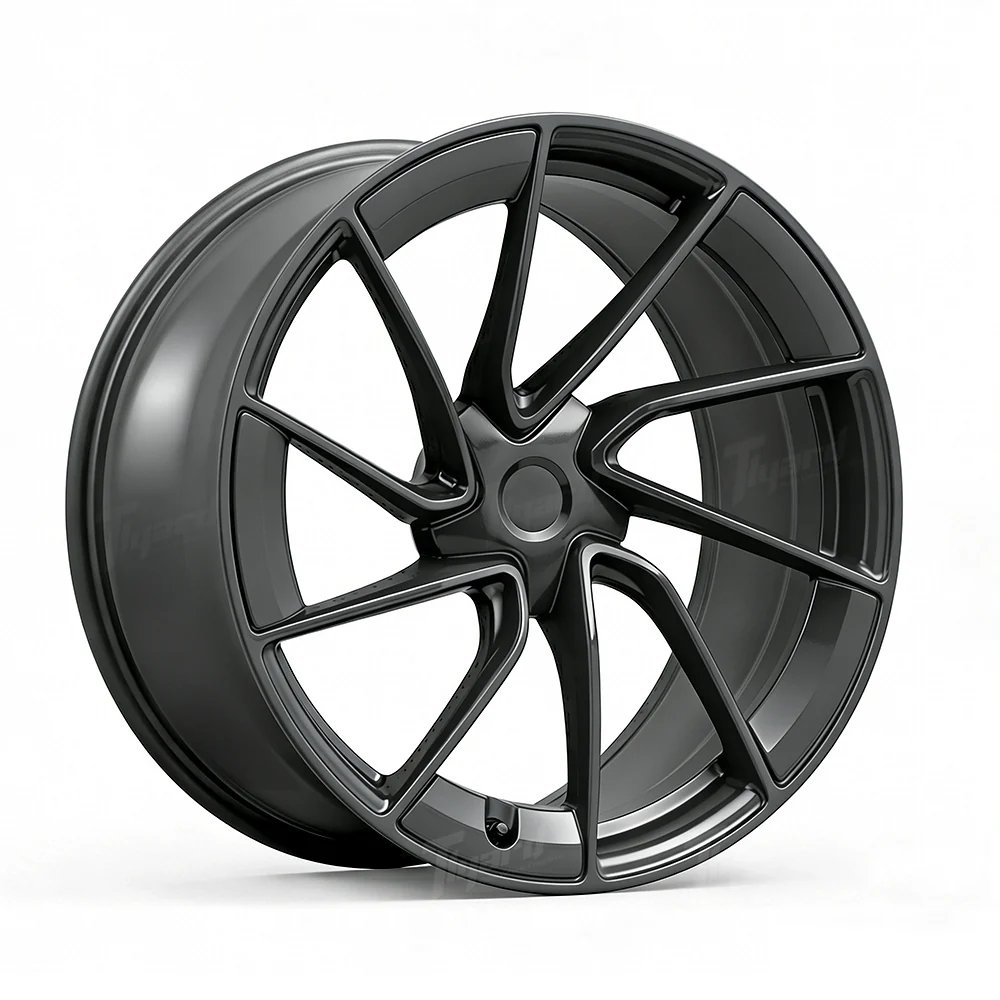

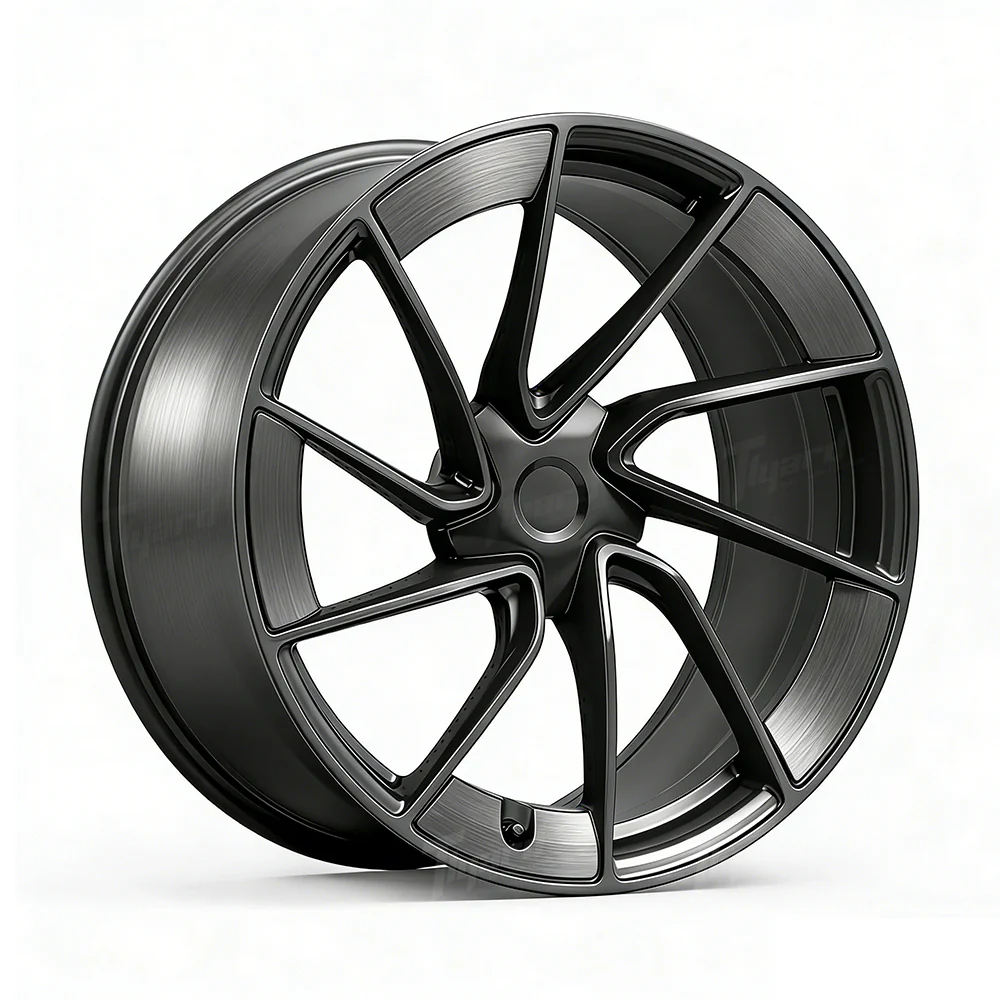

Unleash the full potential of your Tesla Model S or Model X with the Tlyard® TLL-01. Inspired by the sophisticated yet aggressive 2024 Performance "Highland" aesthetic, these wheels have been meticulously upscaled to suit the flagship presence of Tesla’s luxury sedan and SUV. Engineered from high-strength 6061-T6 monoblock forged aluminum, the TLL-01 provides the structural integrity required for the immense torque of Plaid trims while significantly reducing unsprung weight. From 19" efficiency setups to massive 22" staggered fitments, these bespoke wheels are the definitive upgrade for the discerning Tesla owner.

Technical Specifications

Series Name	Tlyard® TLL-01
Construction	One-Piece (Monoblock) Forged
Material	6061-T6 Aerospace Aluminum Alloy
Vehicle Fitment	Tesla Model X/ Model X Plaid/ Model S/ Model S Plaid
Wheel Diameter	19″ / 20″/ 21" / 22" (Customizable)
PCD (Bolt Pattern)	5×120
Center Bore (CB)	64.1 mm
Lug Nut Spec	M14×1.5
Finish Options	Satin Black / Space Gray / Gloss Black (Customizable)
Load Rating	950kg+/ 2,100 lbs



Flagship Performance Aesthetic
Brings the cutting-edge Performance "Warp" design language to the Model S and Model X, offering a modern, refreshed look that aligns perfectly with Tesla’s premium lineup.

High-Load Forged Construction
Precision-machined from aerospace-grade 6061-T6 aluminum. Our monoblock forging process is specifically engineered to handle the higher curb weight and extreme torque output of the Model X and Model S Plaid.

Bespoke Sizing (19" - 22")
Tailored to your driving style—choose 19" or 20" for optimized range and ride quality, or 21" and 22" for a commanding, aggressive stance that fills the wheel arches.

Enhanced Handling & Braking
The lightweight forged design reduces rotational inertia, providing sharper steering response and improved heat dissipation for braking, essential for high-performance driving.



Detailed Size & Weight Matrix

Size	Width & Offset	Tire Recommendation	Estimated Weight (per piece)
19"	19x8.5" ET+35	245/45-19 (S) / 265/50-19 (X)	~12.75 kg (28.1 lbs)
20"	20x9.0" ET+35	245/40-20 (S) / 265/45-20 (X)	~13.5 kg (29.8 lbs)
21"	21x9.5" / 21x10.5" (Staggered)	265/35-21 (F) / 295/30-21 (R)	~14.0 kg (30.9 lbs)
22"	22x9.5" / 22x10.5" (Staggered)	265/35-22 (F) / 285/35-22 (R)	~15.2 kg (33.5 lbs)
23"	23x10.5" / 23x11.0" (Wide)	285/30-23 (F) / 305/30-23 (R)	~16.8 kg (37.0 lbs)



Frequently Asked Questions (FAQ)

Q1: What are the shipping options and delivery times?

Shipping Method & Cost	Destination	Estimated Time
Standard Sea Shipping (FREE)	Global	Approximately 30-35 days
Expedited Air Freight ($500 USD)	Global	Approximately 15 days after production is complete



Q2: How long does the custom production take?

Each Tlyard Forged wheel is custom-forged and precision CNC-machined to your exact specifications.The standard production lead time is approximately 20 days.

Q3: How much weight will I save by upgrading to Tlyard Forged wheels?

• For the same size and style, forged wheels are typically about 10%–25% lighter than cast wheels.

Q4: Are forged wheels stronger than the original factory wheels?

• Yes, forged wheels offer superior durability.
• While most factory wheels are cast for mass production, our forging process creates a much denser and more refined metal structure.
• This results in significantly higher structural strength and impact resistance.

Q5: Do I need to buy new tires?

• If you choose the same diameter as your original wheels (e.g., 19" to 19"), you can reuse your existing tires.
• If you upgrade to a larger diameter (e.g., upgrading from 19" to 20" or 21"), you will need to purchase new tires matching the updated specifications.

Q6: Can I customize the style, size, or color?

• Absolutely, we offer comprehensive customization services.
• Our professional team[[email protected]] will work closely with you to ensure the final product matches your exact preferences for your Tesla.
